1. Introduction

Slope stability is a paramount concern in geotechnical engineering, civil construction, and environmental projects. One of the primary factors leading to slope failure is the detrimental effect of water. Water infiltration increases pore water pressure, reduces soil shear strength, and can lead to erosion, ultimately compromising the structural integrity of the slope. Effective seepage control is, therefore, critical for ensuring long-term slope stability. Among modern solutions, geosynthetics, particularly geotextiles and geomenbranes, play a pivotal role. This article focuses on the function and application of geotextiles in slope seepage control systems.

2. The Role of Geotextiles in Seepage Control

While geomenbranes (such as HDPE, LLDPE) are the primary impermeable barriers, geotextiles are almost always used in conjunction with them to form a composite system. Their roles are multifaceted:

Protection: The primary function of the geotextile in a lining system is to protect the impermeable geomembrane from puncture, abrasion, and damage from sharp particles or irregularities in the subgrade soil. A layer of non-woven geotextile is placed on both sides of the geomembrane to cushion it.

Drainage: Geotextiles, especially thick non-woven varieties, act as a drainage medium. They provide a transmissive plane to collect and transport seepage water or gases that might otherwise become trapped behind the liner, preventing the build-up of hydrostatic pressure that could destabilize the slope or damage the geomembrane.

Filtration: When placed adjacent to soil, the geotextile acts as a filter. It allows water to pass through while preventing the migration of fine soil particles. This is crucial for preventing soil erosion and clogging of the drainage system, thereby maintaining the system's long-term performance.

Separation: Geotextiles prevent the mixing of different soil layers (e.g., the foundation soil and the drainage gravel layer), preserving the integrity and design function of each layer.

3. Design and Construction Considerations

The successful implementation of a geotextile-based seepage control system requires careful design and execution.

Material Selection:

Geomembrane: The choice of geomembrane (type, thickness) depends on the required permeability, chemical resistance, and site-specific stresses.

Geotextile: Non-woven geotextiles are typically preferred for protection, drainage, and filtration due to their high permeability and thickness. Key design properties include mass per unit area (e.g., 300-600 g/m²), puncture resistance, tensile strength, and permittivity (a measure of flow capacity).

System Configuration: A typical cross-section for a slope lining system, from the slope face outward, is:

Prepared Subgrade: The slope is graded and compacted to a smooth, stable surface free of sharp objects.

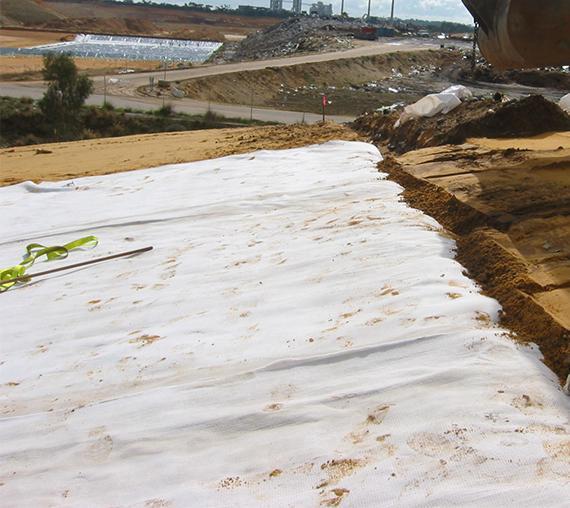

Cushioning/Protection Layer (Lower Geotextile): A layer of non-woven geotextile is laid directly on the subgrade.

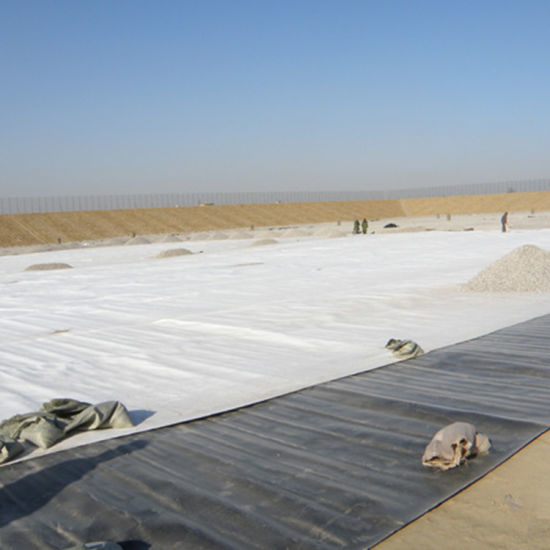

Impermeable Barrier (Geomembrane): The geomembrane panels are deployed, with seams welded together to form a continuous, watertight barrier.

Drainage/Protection Layer (Upper Geotextile): A second layer of geotextile is placed over the geomembrane.

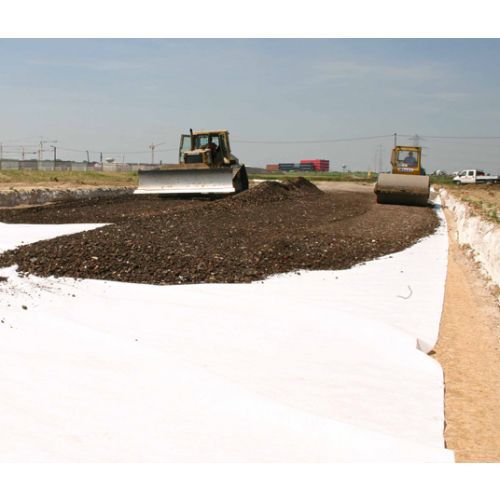

Drainage Layer (Optional): A layer of gravel or a geocomposite drain may be added for enhanced drainage capacity.

Armoring/Backfill: A final layer of soil, rock, or other armoring material is placed to protect the entire system from UV degradation, mechanical damage, and to provide weight.

Anchorage: The lining system must be securely anchored at the top (in an anchor trench) and at the toe of the slope to prevent slippage under gravity and hydraulic forces.

Quality Assurance: Strict quality control during installation is essential. This includes inspecting the subgrade preparation, the integrity of the geotextile and geomembrane rolls, and most critically, the quality of the geomembrane seam welds, which are tested non-destructively (e.g., with air pressure tests) to ensure they are leak-free.

4. Advantages of Using Geotextiles

Enhanced Durability: Protects the critical impermeable layer, extending the service life of the entire system.

Improved System Performance: Combines separation, filtration, drainage, and protection in one material.

Cost-Effectiveness: Reduces the need for thick, graded soil filters, simplifying construction and lowering material and labor costs.

Constructability: Geotextiles are lightweight, easy to cut and place, facilitating faster installation.

5. Conclusion

Geotextiles are an indispensable component of modern slope seepage control systems. They are not merely an add-on but a critical engineered element that ensures the longevity and effectiveness of the primary geomembrane barrier. By fulfilling the functions of protection, drainage, filtration, and separation, geotextiles contribute significantly to the overall stability, safety, and economic viability of slopes in applications such as landfills, reservoirs, canals, and highway embankments. Proper material selection, meticulous design, and quality construction are the keys to unlocking their full potential.
