Geomembrane

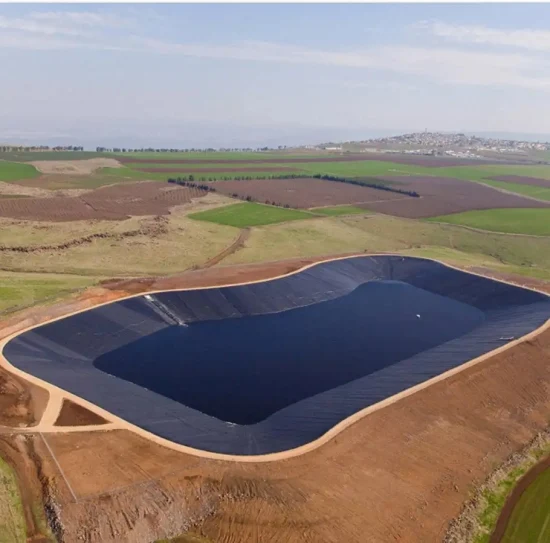

Evaporation HDPE Pond Liners are high-performance geomembranes designed to prevent water loss in industrial evaporation ponds, salt farms, and wastewater treatment facilities

Category:

Geomembrane

E-Mail:

Keyword:

Product Description

Evaporation HDPE Pond Liners are high-performance geomembranes designed to prevent water loss in industrial evaporation ponds, salt farms, and wastewater treatment facilities. Made from premium high-density polyethylene (HDPE), these liners offer superior UV resistance, chemical stability, and puncture resistance, ensuring long-term durability in harsh environments. Their impermeable barrier minimizes seepage, maximizes evaporation efficiency, and protects groundwater from contamination. Ideal for mining, chemical processing, and brine management, these liners provide a cost-effective, low-maintenance solution for large-scale liquid containment.

Tested Item	Test Method	Frequency	Minimum Average Value
			RH0.50 mm	RH0.75 mm	RH1.00 mm		RH1.50 mm		RH2.00 mm
Thickness, (minimum average), mm Lowest individual reading	ASTM D 5199	every roll	0.50 0.48	0.750 0.735	1.00 0.96	1.50 1.47		2.00 1.95
Density, g/cm³	ASTM D 1505	90,000 kg	0.940	0.940	0.940	0.940		0.940
Tensile Strength at Break, N/mm Strength at Yield, N/mm Elongation at Break, % Elongation at Yield, %	ASTM D 669	9,000 kg	13 7 700 12	20 11 700 12	27 15 700 12	40 22 700 12		53 29 700 12
Tear Resistance, N	ASTM D 1004	20,000 kg	60	93	125	187		249
Puncture Resistance, N	ASTM D 4833	20,000 kg	160	240	320	480		640
Carbon Black Content, % (Range)	ASTM D 603*/4218	9,000 kg	2.0 - 3.0
Carbon Black Dispersion	ASTM D 5596	20,000 kg	Note⁽¹⁾	Note⁽¹⁾	Note⁽¹⁾	Note⁽¹⁾		Note⁽¹⁾
Notch Constant Tensile Load, hr	ASTM D 5397,	90,000 kg	300	300	300	300		300
Oxidative Induction Time, min	ASTM D 3895,	90,000 kg	>100	>100	>100	>100		>100
